| 轴承型号 | ||

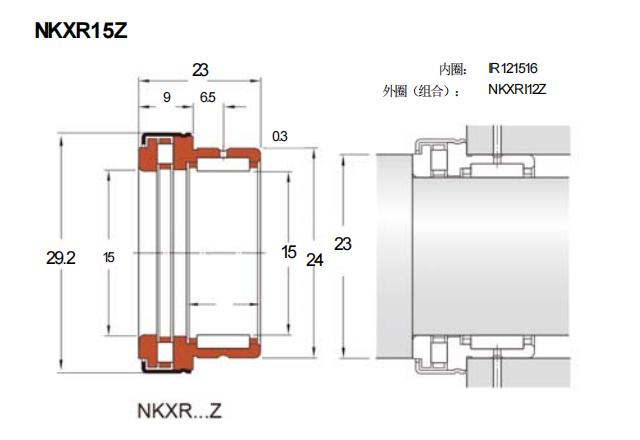

| NKXR(I) | NKXR15Z | |
| 主要尺寸 | ||
| d(Fw) | 15 | |
| D | 24 | |
| C | 23 | |
| B | — | |
| Fw | 15 | |
| Fw公差 | +0.027~+0.016 | |
| D1 | ||
| D2 | 29.2 | |
| C1 | 9 | |
| C2 | 6.5 | |
| rs | 0.3 | |
| rs1 | — | |
| d1 | 15 | |
| 动载Cr(KN) | ||
| 径向 | 12.1 | |
| 轴向 | 14.4 | |
| 静载C0r(KN) | ||
| 径向 | 12.7 | |
| 轴向 | 28.5 | |
| 允许转速 | ||
| (rpm) | 6500 | |
| 安装尺寸(mm) | ||
| da(min) | 23 | |
| db | — | |
| 重量(kg) | 0.045 | |
| 配套轴承型号 | ||
| 内圈 | IR121516 | |
| 外圈(组合) | NKXRI12Z | |
| 防尘罩 | 带端盖 | |
