| 轴承型号 | ||

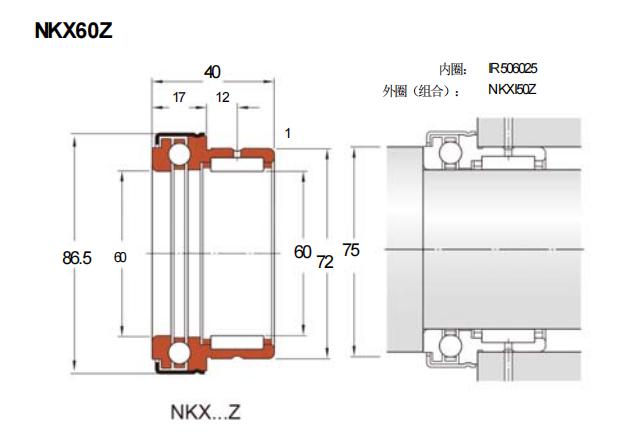

| NKX(I) | NKX60Z | |
| 主要尺寸 | ||
| d(Fw) | 60 | |
| D | 72 | |
| C | 40 | |
| B | — | |
| Fw | 60 | |
| Fw公差 | +0.049~+0.030 | |
| D1 | — | |
| D2 | 86.5 | |
| C1 | 17 | |
| C2 | 12 | |
| rs | 1 | |
| rs1 | — | |
| d1 | 60 | |
| 动载Cr(KN) | ||
| 径向 | 47.5 | |
| 轴向 | 41.4 | |
| 静载C0r(KN) | ||
| 径向 | 103 | |
| 轴向 | 113 | |
| 允许转速 | ||
| (rpm) | 3700 | |
| 安装尺寸(mm) | ||
| da(min) | 75 | |
| db | — | |
| 重量(kg) | 0.4655 | |
| 配套轴承型号 | ||
| 内圈 | IR506025 | |
| 外圈(组合) | NKXI50Z | |
| 防尘罩 | 带端盖 | |
| 商品 | 品牌 | 主要尺寸 | 发货仓 | 产地 | 库存 | 含税单价 | VIP价 | 操作 |
| NTN NKX60Z轴承 滚针+推力球-NKX |
NTN | 60.00 X 72.00 X 40.00 | 华东 | JP-JAPAN | 2 | 561.26 | ￥496.69 | |
