产品分类
| 公称型号(角接触型) | ||
| GAC-S油润滑型 | GAC30S | |

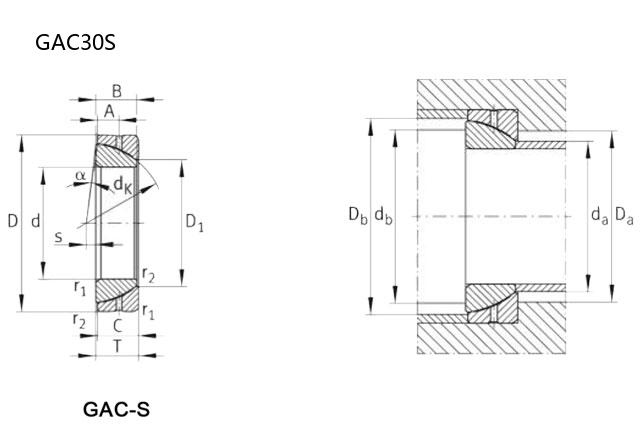

| 主要尺寸(mm) | ||
| d | 30 | |
| D | 55 | |
| T | 17 | |
| B | 16 | |
| C | 16 | |
| dk | 50 | |
| a | 2.3 | |
| D1 | 36.1 | |
| s | 2 | |
| A | 8.5 | |
| r1s(min) | 1 | |
| r2s(min) | 0.3 | |
| 安装尺寸(mm) | ||
| da(max) | 34.7 | |
| db(max) | 45 | |
| Da(min) | 40.5 | |
| Db(min) | 50.5 | |
| 额定载荷(KN) | ||
| Cr | 64.6 | |
| Cor | 323 | |
| 重量(kg) | 0.21 | |
