| 公称型号(角接触型) | ||

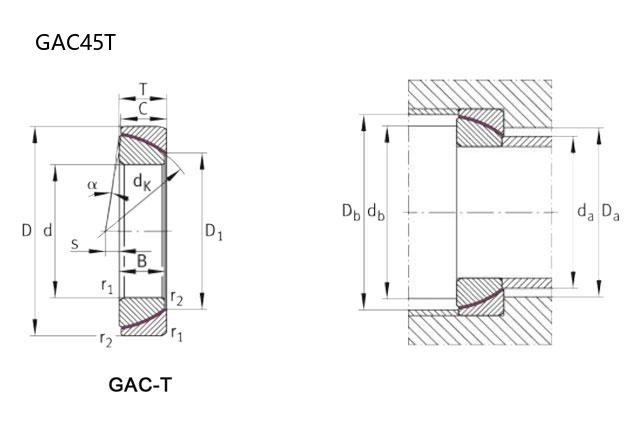

| GAC-T自润滑型 | GAC45T | |
| 主要尺寸(mm) | ||
| d | 45 | |
| D | 75 | |
| T | 20 | |
| B | 19 | |
| C | 19 | |
| dk | 66 | |
| a | 1.7 | |
| D1 | 52.9 | |
| s | 1.5 | |
| A | — | |
| r1s(min) | 1 | |
| r2s(min) | 0.3 | |
| 安装尺寸(mm) | ||
| da(max) | 51.7 | |
| db(max) | 60 | |
| Da(min) | 58 | |
| Db(min) | 67 | |
| 额定载荷(KN) | ||
| Cr | 319 | |
| Cor | 532 | |
| 重量(kg) | 0.41 | |
