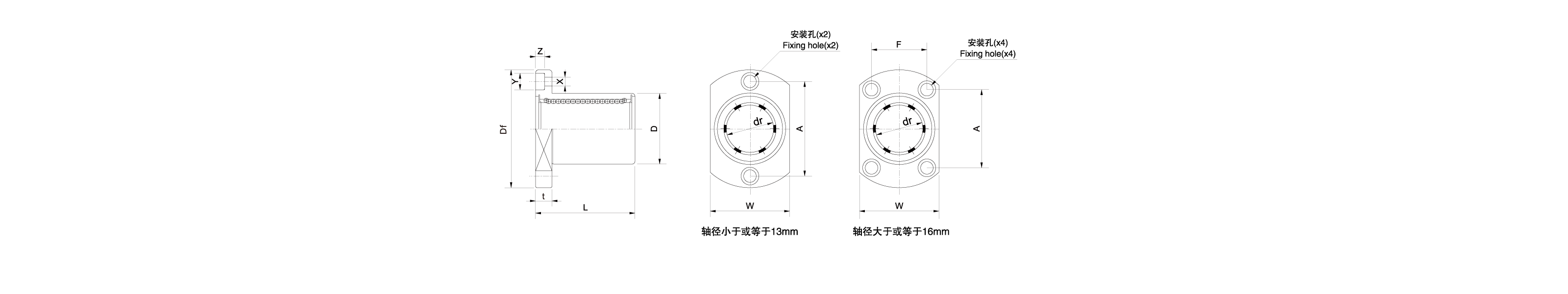

LMH-440C型
| 公称型号(LMH-M系列) | 主要尺寸(mm) | 公差(μm) | 公差(mm) | 法兰部(mm) | 更多参数 | ||||||||||
| 开式 | 密封型 | dr | D | L | Δdr | ΔD | ΔL | Df | W | F | A | t | P.C.D | X×Y×Z | |
| LMH3M | LMH3MUU | 3 | 7 | 10 | 0/-8 | 0/-11 | ±0.3 | 19 | 13 | — | 13 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMH3MA | LMH3MAUU | 3 | 7 | 10 | 0/-8 | 0/-11 | ±0.3 | 19 | 13 | — | 13 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMH4M | LMH4MUU | 4 | 8 | 12 | 0/-8 | 0/-11 | ±0.3 | 20 | 14 | — | 14 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMH4MA | LMH4MAUU | 4 | 8 | 12 | 0/-8 | 0/-11 | ±0.3 | 20 | 14 | — | 14 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMH5M | LMH5MUU | 5 | 10 | 15 | 0/-8 | 0/-11 | ±0.3 | 25 | 16 | — | 17 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMH5MA | LMH5MAUU | 5 | 10 | 15 | 0/-8 | 0/-11 | ±0.3 | 25 | 16 | — | 17 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMH6M | LMH6MUU | 6 | 12 | 19 | 0/-9 | 0/-13 | ±0.3 | 28 | 18 | — | 20 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMH6MA | LMH6MAUU | 6 | 12 | 19 | 0/-9 | 0/-13 | ±0.3 | 28 | 18 | — | 20 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMH8sM | LMH8sMUU | 8 | 15 | 17 | 0/-9 | 0/-13 | ±0.3 | 32 | 21 | — | 24 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMH8sMA | LMH8sMAUU | 8 | 15 | 17 | 0/-9 | 0/-13 | ±0.3 | 32 | 21 | — | 24 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMH8M | LMH8MUU | 8 | 15 | 24 | 0/-9 | 0/-13 | ±0.3 | 32 | 21 | — | 24 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMH8MA | LMH8MAUU | 8 | 15 | 24 | 0/-9 | 0/-13 | ±0.3 | 32 | 21 | — | 24 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMH10M | LMH10MUU | 10 | 19 | 29 | 0/-9 | 0/-16 | ±0.3 | 40 | 25 | — | 29 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMH10MA | LMH10MAUU | 10 | 19 | 29 | 0/-9 | 0/-16 | ±0.3 | 40 | 25 | — | 29 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMH12M | LMH12MUU | 12 | 21 | 30 | 0/-9 | 0/-16 | ±0.3 | 42 | 27 | — | 32 | 6 | 32 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
