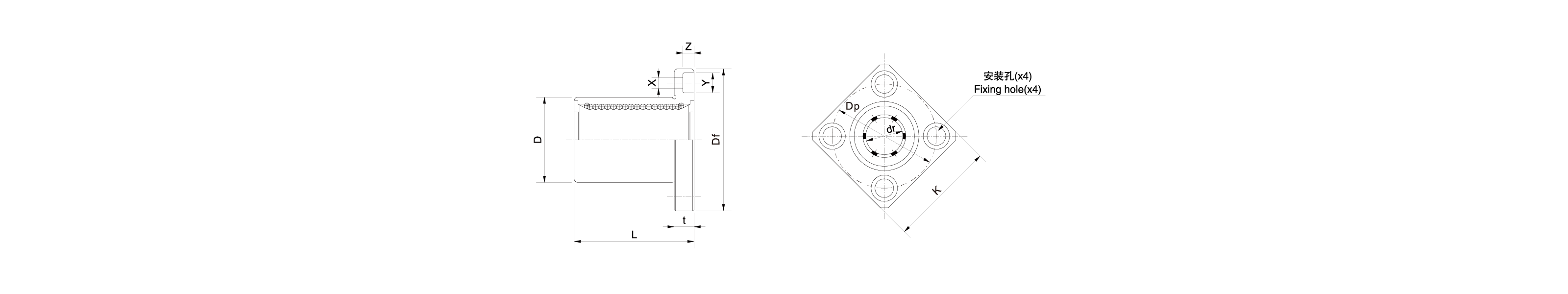

LMK-反向沉孔型
| 公称型号(LMK-Z系列) | 主要尺寸(mm) | 公差(μm) | 公差(mm) | 法兰部(mm) | 更多参数 | ||||||||
| 开式 | 密封型 | dr | D | L | Δdr | ΔD | ΔL | Df | K | t | P.C.D | X×Y×Z | |
| LMK3-Z | LMK3UU-Z | 3 | 7 | 10 | 0/-8 | 0/-11 | ±0.3 | 19 | 15 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK3A-Z | LMK3AUU-Z | 3 | 7 | 10 | 0/-8 | 0/-11 | ±0.3 | 19 | 15 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK4-Z | LMK4UU-Z | 4 | 8 | 12 | 0/-8 | 0/-11 | ±0.3 | 20 | 16 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK4A-Z | LMK4AUU-Z | 4 | 8 | 12 | 0/-8 | 0/-11 | ±0.3 | 20 | 16 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK5-Z | LMK5UU-Z | 5 | 10 | 15 | 0/-8 | 0/-11 | ±0.3 | 25 | 20 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK5A-Z | LMK5AUU-Z | 5 | 10 | 15 | 0/-8 | 0/-11 | ±0.3 | 25 | 20 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK6-Z | LMK6UU-Z | 6 | 12 | 19 | 0/-9 | 0/-13 | ±0.3 | 28 | 22 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK6A-Z | LMK6AUU-Z | 6 | 12 | 19 | 0/-9 | 0/-13 | ±0.3 | 28 | 22 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8s-Z | LMK8sUU-Z | 8 | 15 | 17 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8sA-Z | LMK8sAUU-Z | 8 | 15 | 17 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8-Z | LMK8UU-Z | 8 | 15 | 24 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8A-Z | LMK8AUU-Z | 8 | 15 | 24 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK10-Z | LMK10UU-Z | 10 | 19 | 29 | 0/-9 | 0/-16 | ±0.3 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMK10A-Z | LMK10AUU-Z | 10 | 19 | 29 | 0/-9 | 0/-16 | ±0.3 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMK12-Z | LMK12UU-Z | 12 | 21 | 30 | 0/-9 | 0/-16 | ±0.3 | 42 | 32 | 6 | 32 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
