LMK-黑铬型

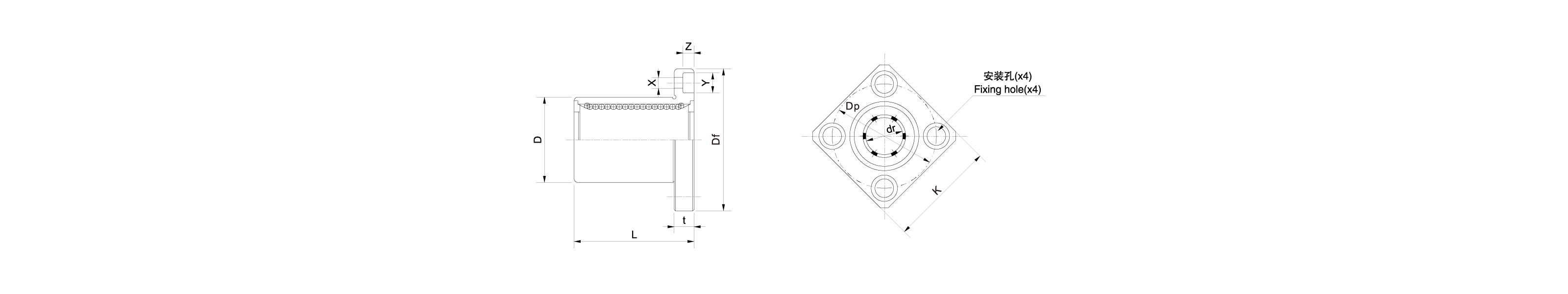

| 公称型号(LMK-R系列) | 主要尺寸(mm) | 公差(μm) | 公差(mm) | 法兰部(mm) | 更多参数 | ||||||||
| 开式 | 密封型 | dr | D | L | Δdr | ΔD | ΔL | Df | K | t | P.C.D | X×Y×Z | |
| LMK3R | LMK3UUR | 3 | 7 | 10 | 0/-8 | 0/-15 | ±0.3 | 19 | 15 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK3AR | LMK3AUUR | 3 | 7 | 10 | 0/-8 | 0/-15 | ±0.3 | 19 | 15 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK4R | LMK4UUR | 4 | 8 | 12 | 0/-8 | 0/-15 | ±0.3 | 20 | 16 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK4AR | LMK4AUUR | 4 | 8 | 12 | 0/-8 | 0/-15 | ±0.3 | 20 | 16 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK5R | LMK5UUR | 5 | 10 | 15 | 0/-8 | 0/-15 | ±0.3 | 25 | 20 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK5AR | LMK5AUUR | 5 | 10 | 15 | 0/-8 | 0/-15 | ±0.3 | 25 | 20 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK6R | LMK6UUR | 6 | 12 | 19 | 0/-9 | 0/-18 | ±0.3 | 28 | 22 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK6AR | LMK6AUUR | 6 | 12 | 19 | 0/-9 | 0/-18 | ±0.3 | 28 | 22 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8sR | LMK8sUUR | 8 | 15 | 17 | 0/-9 | 0/-18 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8sAR | LMK8sAUUR | 8 | 15 | 17 | 0/-9 | 0/-18 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8R | LMK8UUR | 8 | 15 | 24 | 0/-9 | 0/-18 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8AR | LMK8AUUR | 8 | 15 | 24 | 0/-9 | 0/-18 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK10R | LMK10UUR | 10 | 19 | 29 | 0/-9 | 0/-21 | ±0.3 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMK10AR | LMK10AUUR | 10 | 19 | 29 | 0/-9 | 0/-21 | ±0.3 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMK12R | LMK12UUR | 12 | 21 | 30 | 0/-9 | 0/-21 | ±0.3 | 42 | 32 | 6 | 32 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
