LMK-发黑型

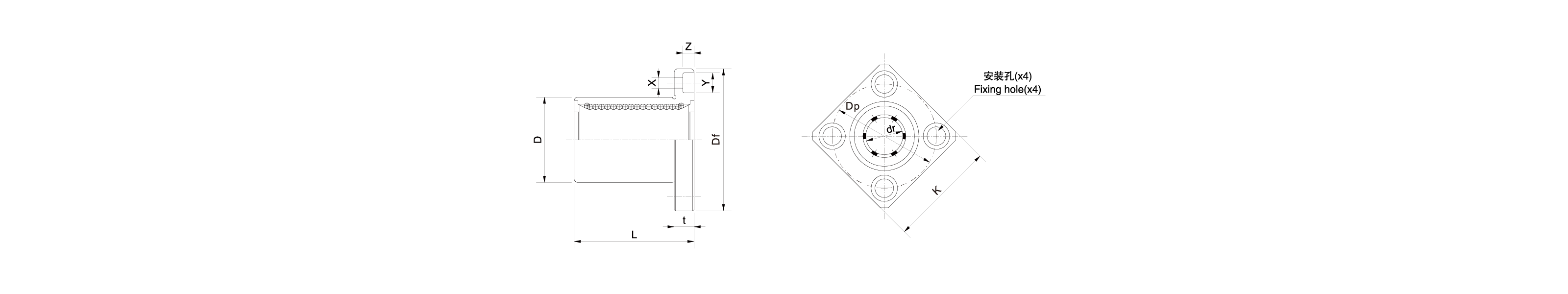

| 公称型号(LMK-B系列) | 主要尺寸(mm) | 公差(μm) | 公差(mm) | 法兰部(mm) | 更多参数 | ||||||||
| 开式 | 密封型 | dr | D | L | Δdr | ΔD | ΔL | Df | K | t | P.C.D | X×Y×Z | |
| LMK3B | LMK3UUB | 3 | 7 | 10 | 0/-8 | 0/-11 | ±0.3 | 19 | 15 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK3AB | LMK3AUUB | 3 | 7 | 10 | 0/-8 | 0/-11 | ±0.3 | 19 | 15 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK4B | LMK4UUB | 4 | 8 | 12 | 0/-8 | 0/-11 | ±0.3 | 20 | 16 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK4AB | LMK4AUUB | 4 | 8 | 12 | 0/-8 | 0/-11 | ±0.3 | 20 | 16 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK5B | LMK5UUB | 5 | 10 | 15 | 0/-8 | 0/-11 | ±0.3 | 25 | 20 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK5AB | LMK5AUUB | 5 | 10 | 15 | 0/-8 | 0/-11 | ±0.3 | 25 | 20 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK6B | LMK6UUB | 6 | 12 | 19 | 0/-9 | 0/-13 | ±0.3 | 28 | 22 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK6AB | LMK6AUUB | 6 | 12 | 19 | 0/-9 | 0/-13 | ±0.3 | 28 | 22 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8sB | LMK8sUUB | 8 | 15 | 17 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8sAB | LMK8sAUUB | 8 | 15 | 17 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8B | LMK8UUB | 8 | 15 | 24 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8AB | LMK8AUUB | 8 | 15 | 24 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK10B | LMK10UUB | 10 | 19 | 29 | 0/-9 | 0/-16 | ±0.3 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMK10AB | LMK10AUUB | 10 | 19 | 29 | 0/-9 | 0/-16 | ±0.3 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMK12B | LMK12UUB | 12 | 21 | 30 | 0/-9 | 0/-16 | ±0.3 | 42 | 32 | 6 | 32 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
