LMK-440C型
| 公称型号(LMK-M系列) | 主要尺寸(mm) | 公差(μm) | 公差(mm) | 法兰部(mm) | 更多参数 | ||||||||

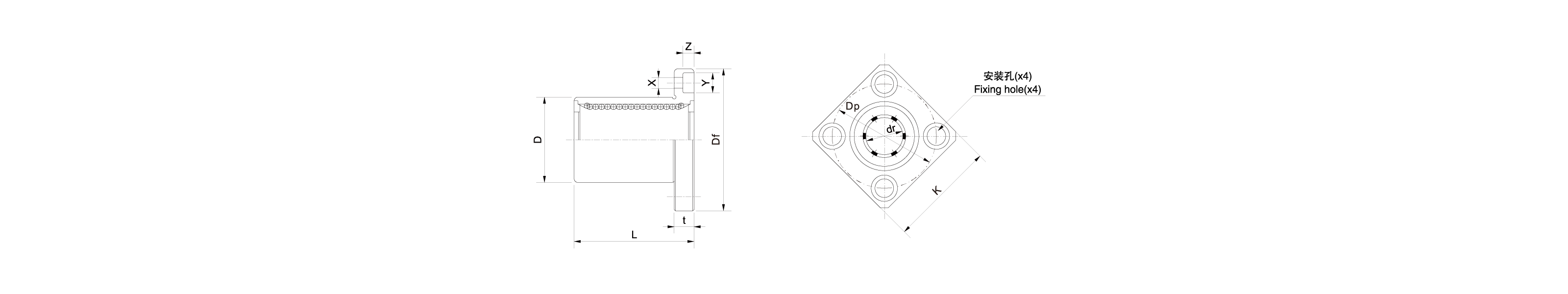

| 开式 | 密封型 | dr | D | L | Δdr | ΔD | ΔL | Df | K | t | P.C.D | X×Y×Z | |
| LMK3M | LMK3MUU | 3 | 7 | 10 | 0/-8 | 0/-11 | ±0.3 | 19 | 15 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK3MA | LMK3MAUU | 3 | 7 | 10 | 0/-8 | 0/-11 | ±0.3 | 19 | 15 | 3.5 | 13 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK4M | LMK4MUU | 4 | 8 | 12 | 0/-8 | 0/-11 | ±0.3 | 20 | 16 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK4MA | LMK4MAUU | 4 | 8 | 12 | 0/-8 | 0/-11 | ±0.3 | 20 | 16 | 3.5 | 14 | 2.5×4.5×2.1 | 点击查看 | 咨询客服 |
| LMK5M | LMK5MUU | 5 | 10 | 15 | 0/-8 | 0/-11 | ±0.3 | 25 | 20 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK5MA | LMK5MAUU | 5 | 10 | 15 | 0/-8 | 0/-11 | ±0.3 | 25 | 20 | 5 | 17 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK6M | LMK6MUU | 6 | 12 | 19 | 0/-9 | 0/-13 | ±0.3 | 28 | 22 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK6MA | LMK6MAUU | 6 | 12 | 19 | 0/-9 | 0/-13 | ±0.3 | 28 | 22 | 5 | 20 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8sM | LMK8sMUU | 8 | 15 | 17 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8sMA | LMK8sMAUU | 8 | 15 | 17 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8M | LMK8MUU | 8 | 15 | 24 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK8MA | LMK8MAUU | 8 | 15 | 24 | 0/-9 | 0/-13 | ±0.3 | 32 | 25 | 5 | 24 | 3.5×6×3.1 | 点击查看 | 咨询客服 |
| LMK10M | LMK10MUU | 10 | 19 | 29 | 0/-9 | 0/-16 | ±0.3 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMK10MA | LMK10MAUU | 10 | 19 | 29 | 0/-9 | 0/-16 | ±0.3 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
| LMK12M | LMK12MUU | 12 | 21 | 30 | 0/-9 | 0/-16 | ±0.3 | 42 | 32 | 6 | 32 | 4.5×7.5×4.1 | 点击查看 | 咨询客服 |
