| 轴承型号 | ||
| CRY英制系列 | CRY128VUU | |

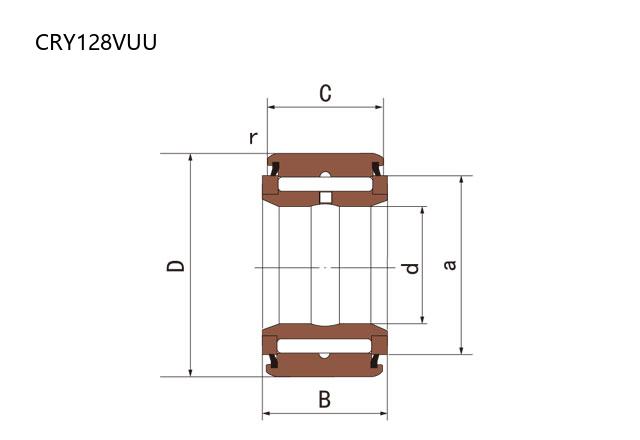

| 主要尺寸(mm) | ||
| d | 82.68 | |
| D | 203.2 | |
| B | 114.3 | |
| C | 107.95 | |
| a | 111.1 | |
| r | 5.6 | |
| R | 圆柱 | |
| 额定载荷(KN) | ||
| Cr | 410.1 | |
| Cor | 1281.9 | |
| 限制速度 | ||
| (rpm) | 350 | |
| 间隙配合轴径 | ||
| (min) | 82.651 | |
| (max) | 82.677 | |
| 过渡配合轴径 | ||
| (min) | 82.689 | |
| (max) | 82.715 | |
| 过盈配合轴径 | ||
| (min) | 82.702 | |
| (max) | 82.728 | |
| 滚子引导 | ||
| V | V-满滚针 | |
| 密封 | ||
| UU | UU密封型 | |
| 外圈形状 | ||
| X/R | 直筒 | |
| 重量(kg) | 21.45 | |
| 商品 | 品牌 | 主要尺寸 | 发货仓 | 产地 | 库存 | 含税单价 | VIP价 | 操作 |
| HRB CRY128VUU轴承 支撑滚轮轴承 |
HRB | 82.68 X 203.20 X 114.30 | 华东 | 哈尔滨 | 1000 | 0 | ￥0 | |
| HRB CRY128VUU轴承 支撑滚轮轴承 |
HRB | 82.68 X 203.20 X 114.30 | 华东 | 哈尔滨 | 1000 | 0 | ￥0 | |
