BCE/BCH英制封口型
| 轴承型号 | 主要尺寸(mm) | 额定载荷(KN) | 限速 | 轴径配合h6 | 更多操作 | |||||

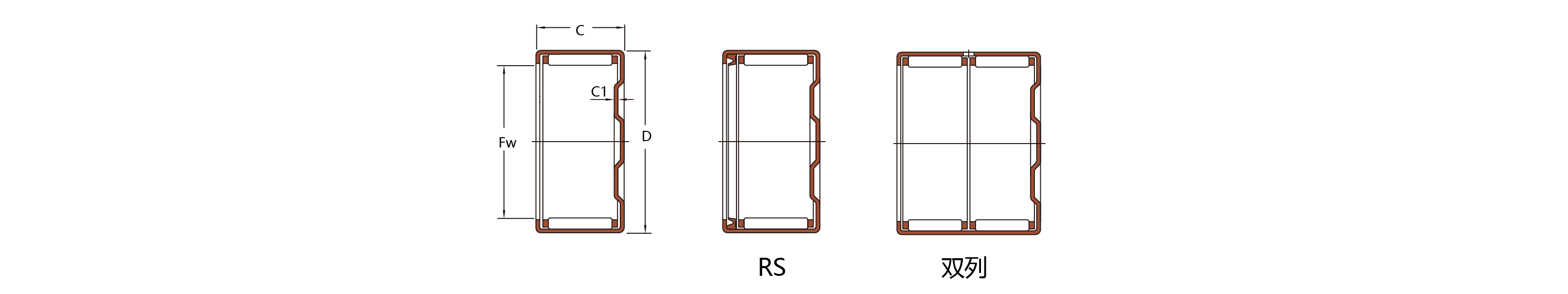

| BCE/BCH英制封口型 | Fw | D | C | C1(max) | Cr | Cor | (rpm) | max | min | |
| BCE24 | 3.175 | 6.35 | 6.35 | 0.8 | 1.07 | 0.74 | 31500 | 3.175 | 3.166 | 咨询客服 |
| BCE34 | 4.762 | 8.731 | 6.35 | 0.8 | 1.79 | 1.36 | 21000 | 4.762 | 4.753 | 咨询客服 |
| BCE36 | 4.762 | 8.731 | 9.525 | 0.8 | 2.75 | 2.35 | 21000 | 4.762 | 4.753 | 咨询客服 |
| BCE45 | 6.35 | 11.112 | 7.92 | 1 | 1.51 | 1.12 | 55000 | 6.35 | 6.341 | 咨询客服 |
| BCE47 | 6.35 | 11.112 | 11.13 | 1 | 2.65 | 2.31 | 55000 | 6.35 | 6.341 | 咨询客服 |
| BCE55 | 7.938 | 12.7 | 7.92 | 1 | 1.88 | 1.56 | 45000 | 7.938 | 7.929 | 咨询客服 |
| BCE56 | 7.938 | 12.7 | 9.52 | 1 | 2.62 | 2.39 | 45000 | 7.938 | 7.929 | 咨询客服 |
| BCE57 | 7.938 | 12.7 | 11.13 | 1 | 3.31 | 3.22 | 45000 | 7.938 | 7.929 | 咨询客服 |
| BCE59 | 7.938 | 12.7 | 14.27 | 1 | 4.19 | 4.36 | 45000 | 7.938 | 7.929 | 咨询客服 |
| BCH57 | 7.938 | 14.288 | 11.13 | 1.3 | 4.15 | 3.73 | 45000 | 7.938 | 7.929 | 咨询客服 |
| BCE65 | 9.525 | 14.288 | 7.92 | 1 | 2.22 | 2.01 | 40000 | 9.525 | 9.516 | 咨询客服 |
| BCE66 | 9.525 | 14.288 | 9.52 | 1 | 3.09 | 3.08 | 40000 | 9.525 | 9.516 | 咨询客服 |
| BCE68 | 9.525 | 14.288 | 12.7 | 1 | 4.19 | 4.56 | 40000 | 9.525 | 9.516 | 咨询客服 |
| BCE69 | 9.525 | 14.288 | 14.27 | 1 | 4.94 | 5.63 | 40000 | 9.525 | 9.516 | 咨询客服 |
| BCE610 | 9.525 | 14.288 | 15.88 | 1 | 5.66 | 6.7 | 40000 | 9.525 | 9.516 | 咨询客服 |
